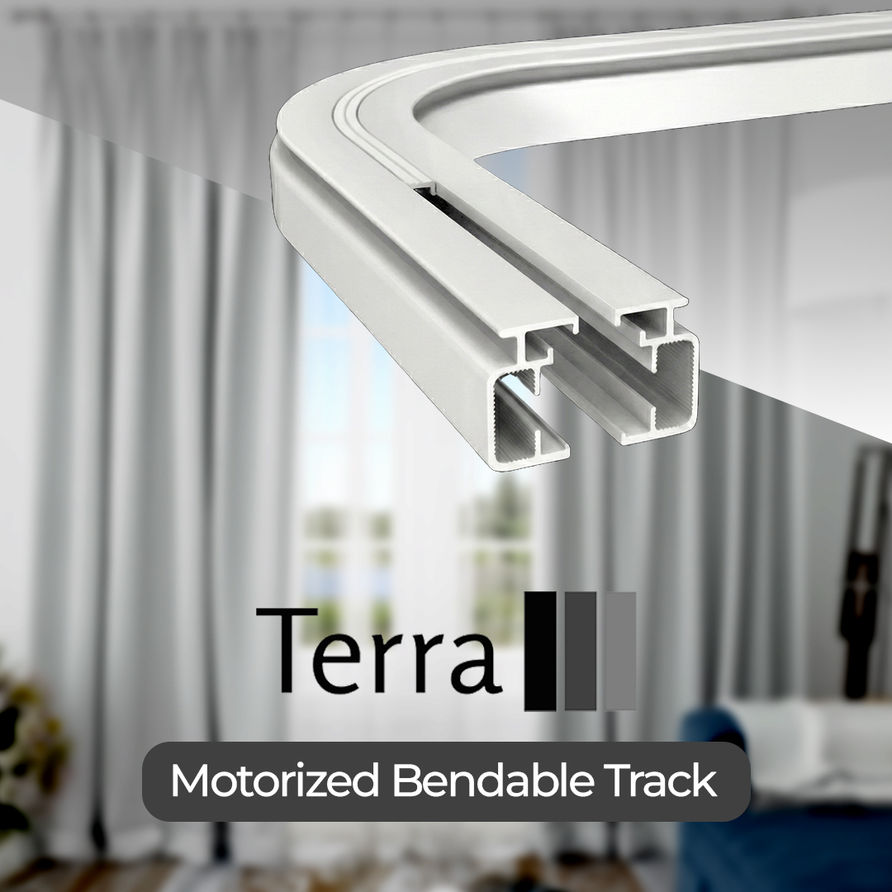

Terra Motorized Bendable Curtain Track | Flexible Track for Automatic Curtains

• Maximum Track Length: Customizable up to 50 ft in any shape

• Track Weight: Approx. 2.6 kg per 15 ft / 0.17 kg per meter

• Track Dimensions: Approx. 30 mm W × 25 mm H

• Track Material: Anodized aluminium alloy with PVC sleeve

• Gliders: Low-friction nylon rollers

• Drive & Carrier System: Reinforced rubber belt with internal steel support wires

• Master Carrier: Supported by 13 wheels for ultra-smooth movement

• Designed to bend around curved walls, bay windows, circular layouts and L-shaped window designs, making this motorized bendable curtain track suitable for complex and custom-shaped installations.

• Customizable up to 50 ft in the required shape, providing a flexible track for automatic curtains across extended windows and uniquely designed spaces.

• An integrated PVC sleeve and low-friction nylon rollers help reduce resistance and operating noise, supporting smooth and quiet movement along the electric flexible curtain track.

• Built to support heavy blackout and fold curtains, providing stable automated movement for installations that require a motorized flexible curtain track with higher curtain loads.

• Compatible with remote-based operation and compatible Wi-Fi motor setups, allowing the system to function as a convenient remote control curtain track for modern automated spaces.

• The reinforced rubber drive belt with internal steel support wires provides consistent movement through curved and customized track layouts.

• The 13-wheel master carrier is designed for smooth and stable curtain movement, helping the bendable curtain track system maintain consistent operation across curved sections.

• Anodized aluminium alloy construction provides a durable and lightweight track structure, combining flexible shaping with reliable performance for residential and commercial curtain automation.

• Measure your window or installation area accurately. Mark the mounting points for brackets, whether for ceiling-mount or wall-mount installation of the automated curtain track.

• Fix the brackets securely using screws and anchors suitable for your wall or ceiling type. Make sure they are perfectly aligned for smooth smart curtain track movement.

• Fix the brackets securely using screws and anchors suitable for your wall or ceiling type. Make sure they are perfectly aligned for smooth smart curtain track movement.

• Connect the curtain motor to one end of the track. Ensure the motor’s output shaft aligns with the drive belt connector. Tighten screws to lock it in place.

• Feed the drive belt through the track and connect both ends to the master carrier. The belt should be taut — not too loose or too tight — for efficient remote control curtain track performance.

• Connect the power adapter to a 110V/220V AC outlet. Once powered, the smart curtain track system will perform a short self-calibration.

• Use the remote or app to set the open and close limit positions for the automatic curtain system. The motor will remember these settings automatically.

• Run the system multiple times using the remote control curtain track or app to ensure smooth operation. Adjust alignment if necessary and mount your curtains onto the hooks.

• Use the remote to sync with the motor (press the pairing button on the motor). For WiFi models, connect to the Smart Life App and integrate with Alexa or Google Home.

7 Years

1. How can the Terra Motorized Bendable Curtain Track be shaped?

The track is designed with a flexible bendable construction that allows it to follow curved walls, bay windows, circular layouts and L-shaped window designs. It can be customized up to 50 ft in any shape.

2. What type of drive mechanism is used in the bendable curtain track?

The system uses a reinforced rubber drive belt with internal steel support wires. This reinforced belt is designed to provide reliable movement through customized track layouts.

3. What is the purpose of the 13-wheel master carrier?

The 13-wheel master carrier is designed to provide smooth and stable movement along the track. Its multi-wheel construction supports consistent curtain movement through the track’s curved or customized sections.

4. What type of rollers are used in the flexible curtain track?

The track uses low-friction nylon rollers. These rollers help reduce movement resistance and contribute to smooth and quiet curtain operation, including through customized track layouts.

5. Can the Terra bendable track support heavy blackout curtains?

Yes. The product is designed to support heavy blackout curtains and fold curtains, making it suitable for residential and commercial installations where heavier curtain fabrics are required.
